300Mbps Wireless Network Bridge MKC84
Product Description
MKC84 is an outdoor wireless bridge designed for video surveillance of elevators, pendant towers, communities , learning, factories , orchards , breeding plants, planting greenhouses, scenic spots, etc.; the device works in the 2.4 GHz frequency band and can provide up to 300Mbps of wireless Data transmission rate; built-in 8 dBi high-gain directional antenna, stronger signal penetration, outdoor point-to-point bridging distance up to 1000 meters; pole wall-mounted compatible design, can be directly installed on the wall or pole column, beautiful and elegant ; Can work in various outdoor environments such as wind , rain and snow.
Product Specifications
| Hardware Specifications | ||
| CPU | MT7628 | |
| storage | Flash: 2MB; DDR: 8MB | |
| wired standard | IEEE802.3, IEEE802.3u | |

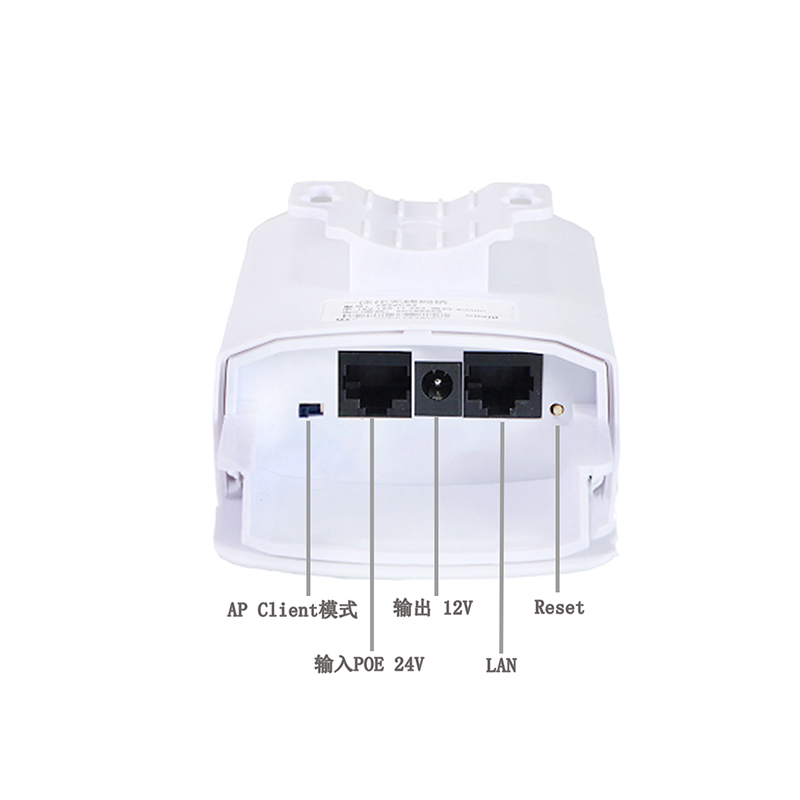

| Ethernet interface | 10/100Mbps LAN port*2 | |
| antenna | Built-in directional antenna 8dBi | |
| button | Reset Button *1 | |
| Power supply | One Ethernet port POE 24V | |
| DC interface | Output 12V | |
| DIP switch | Switch between Client and AP modes | |

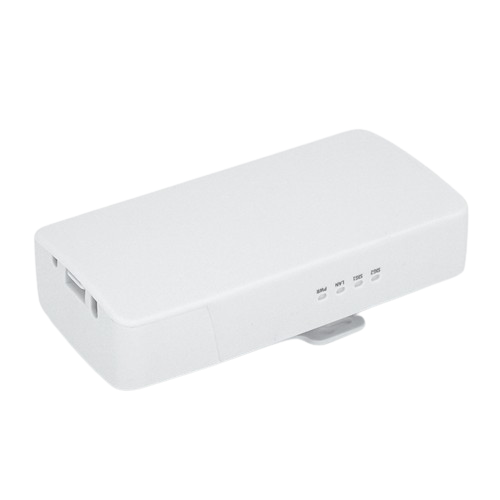

| panel indicator | LED*4 ( POWER, LAN, SIG1, SIG2 (signal strength) ) | |
| Software Specifications | ||
| Operating mode | Main bridge side (AP mode) | |
| Subnet bridge side (Client mode) | ||
| Subnet bridge side (AP+Client mode) | ||
| wireless setting | Basic settings: wireless name, encryption method, wireless password, wireless mode | |
| Advanced Settings: BG Protected Mode, Wi-Fi Multimedia (WMM) Disable | ||
| network settings | LAN settings, DHCP server settings | |
| System Management | Administrator settings | |
| Firmware upgrade | ||
| System Configuration | ||
| language settings | ||
| Automatic system cleanup |
| Wireless Specifications | ||
| wireless standard | IEEE 802.11b/g/n | |
| wireless rate | 300Mbps | |
| wireless power | 20dBm | |
| Wireless Acceptance Sensitivity | -92dBm | |
| wireless band | 2.4GHz | |
| Other specifications | ||
| Application Environment | Working temperature: -20℃~55℃ | |
| Working humidity: 10%~90% RH non-condensing | ||
| Storage temperature: -40℃~80℃ | ||
| Storage humidity: 5%~90% RH non-condensing | ||
| Product Size | 153*78*50mm | |
| Installation method | pole, wall mount | |
| Package Contents | A pair of MKC84 DIP bridges | |
| POE 24V power adapter two | ||
| Four cable ties | ||
| Configuration manual, certificate, warranty card |
