5.8GHz bridge MKS03 device
Product Description

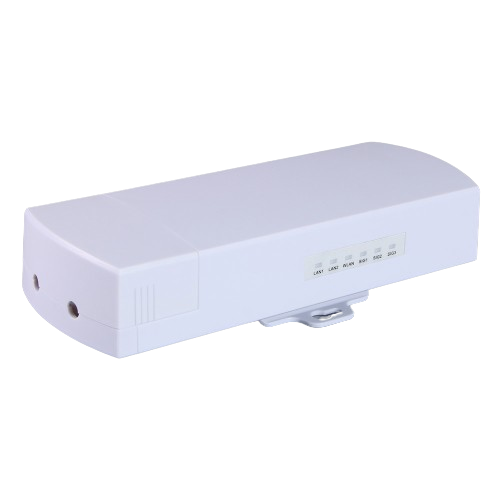

MKS03 is an outdoor wireless bridge designed for video surveillance of elevators, pendant towers , communities , learning, factories , orchards , breeding plants, planting greenhouses, scenic spots and other scenes; the device works in the 5.8 GHz frequency band and can provide up to 45 0Mbps. Wireless data transmission rate; built-in 12 dBi high-gain directional antenna, stronger signal penetration, outdoor point-to-point bridging distance up to 2000 meters; pole wall-mounted compatible design, can be directly installed on the wall or pole column, beautiful Generous ; can work in various outdoor environments such as wind , rain and snow.
Product Specifications
| Hardware Specifications | ||
| CPU | RTL8881 | |
| storage | Flash: 2MB; DDR: 8MB | |
| wired standard | IEEE802.3, IEEE802.3u | |

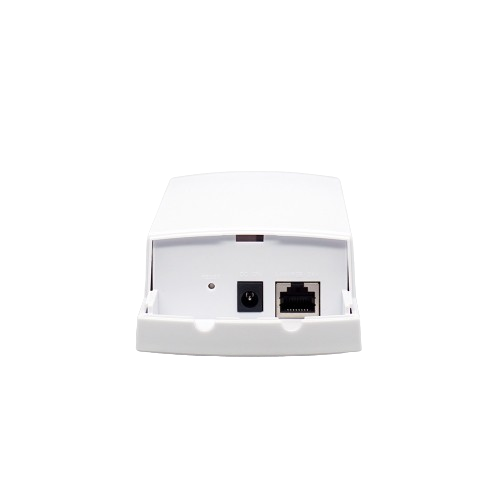

| Ethernet interface | 10/100Mbps LAN port*1 | |
| antenna | Built-in directional antenna 12dBi | |
| button | Reset Button *1 | |
| Power supply | POE 24V or DC 12V | |
| panel indicator | LED*4 (LAN, WLAN, RSSI1, RSSI2) | |
| Software Specifications | ||
| system status | System information, wireless information, LAN information | |
| Quick Setup | master mode | |
| slave mode | ||
| network settings | Network mode, device IP | |
| wireless setting | Tube wireless status | |
| Basic settings (wireless switch, wireless light, frequency band, wireless password, channel) | ||
| MAC authentication | ||
| advanced settings | BG Protected Mode, Transmit Power, Wi-Fi Multimedia (WMM) |
| Wireless Specifications | ||
| wireless standard | IEEE 802.11a/n/ac | |
| wireless rate | 450Mbps | |
| wireless power | 20dBm | |
| Wireless Acceptance Sensitivity | -90dBm | |
| wireless band | 5.8GHz | |
| Other specifications | ||
| Application Environment | Working temperature: -20℃~55℃ | |
| Working humidity: 10%~90% RH non-condensing | ||
| Storage temperature: -40℃~80℃ | ||
| Storage humidity: 5%~90% RH non-condensing | ||
| Product Size | 202*78*56mm | |
| Installation method | pole, wall mount | |
| Package Contents | MKS03 bridge pair | |
| Two POE 24V power adapters | ||
| cable ties | ||
| Configuration manual, certificate, warranty card |
